UBox V2 75V 200A VESC Based ESC

This is the version 2 of the UBox ESC from Spintend!

Technical Information:

• Voltage :  16-75V (peak voltage should be less more than 80V)
• Current : Max 100A/channel, the dual max 200A
• 12V output:  Max 3A(the horn and light share this current)
• 5V output : Max output 500mA
• Switch button: current  Max 15mA
• Size and weight: 130 x 83x27mm (including screw)/ 396g

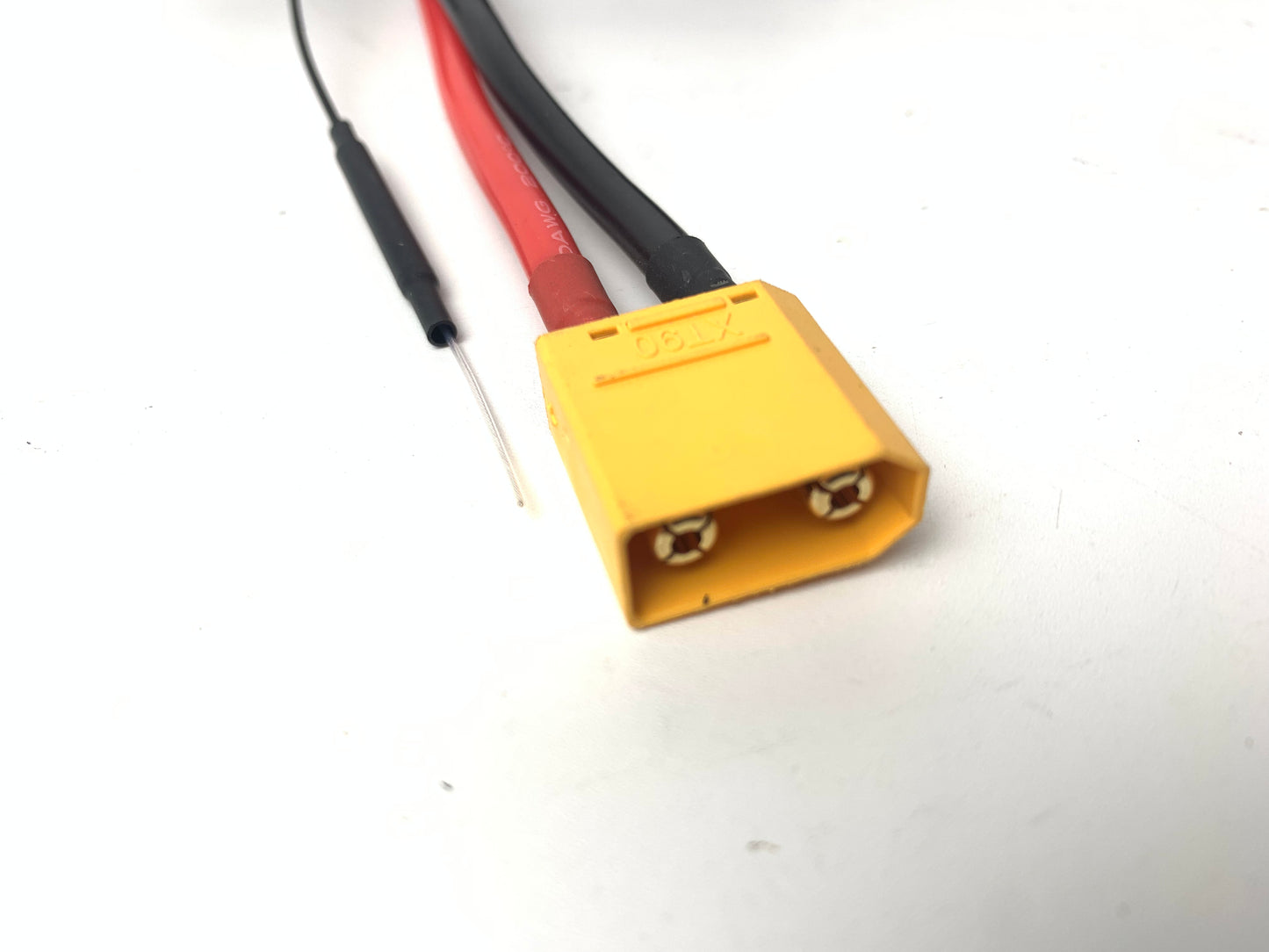

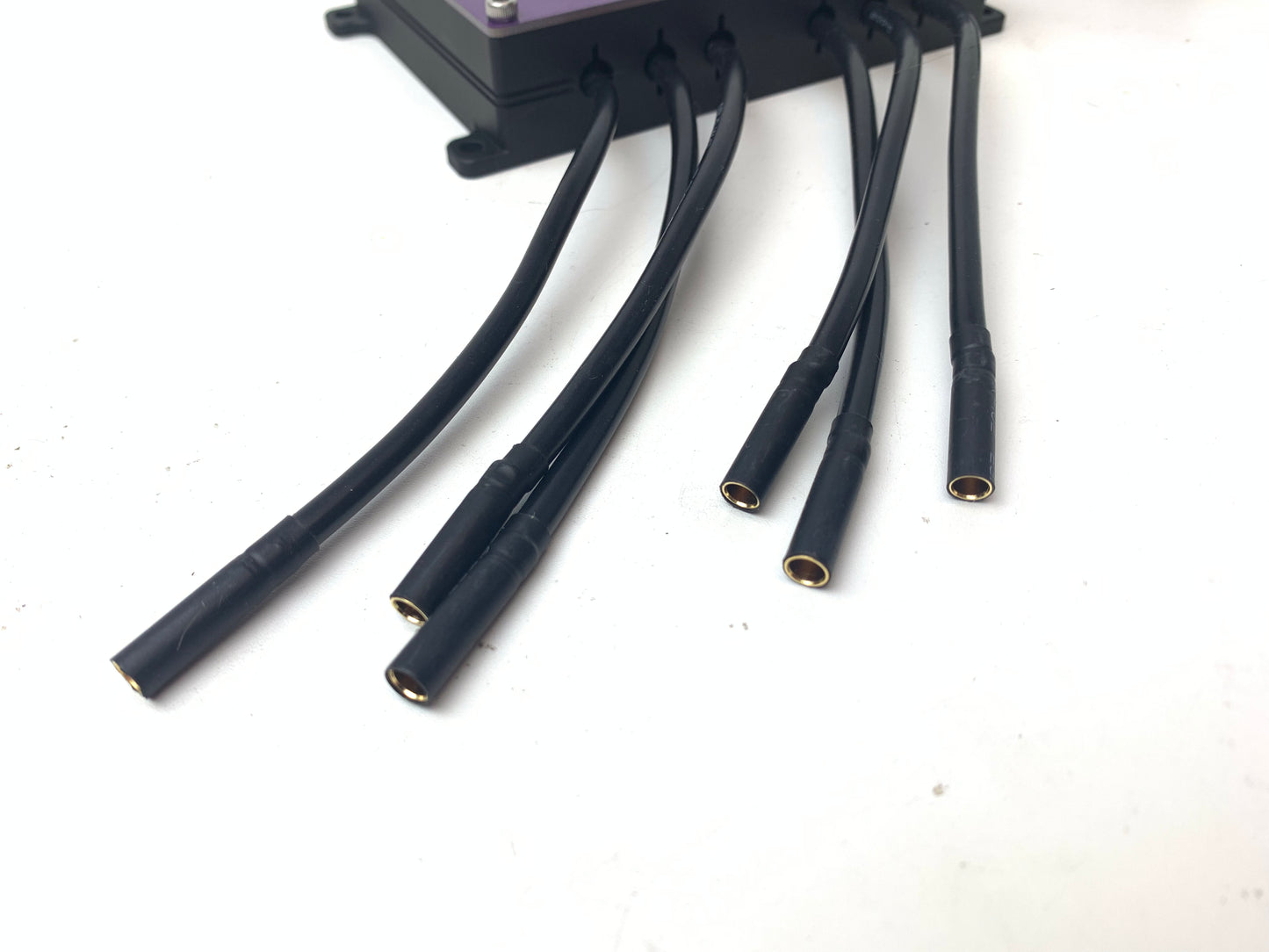

• Cables: Motor cable: 12AWG 12cm / Battery Cable: 10AWG 12cm
